AB REINIGER INDUSTRIES PVT.LTD.,

OVER HEAD TRAVELLING CLEANERS (OHTC)

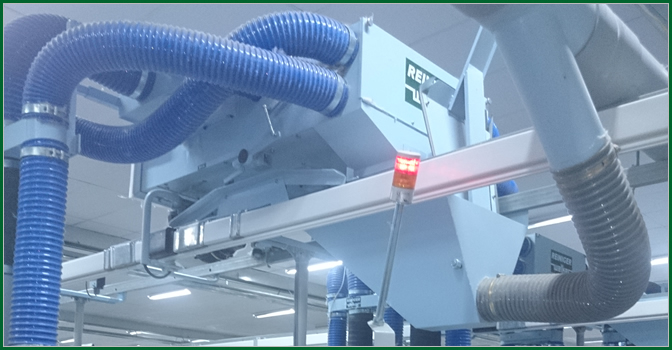

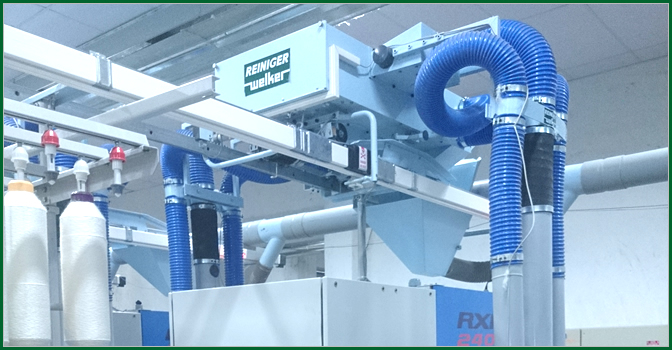

The purpose of OHTC – Over Head Travelling Cleaner is to clean the machine parts of yarn producing/processing machine of either kind by blowing the filtered atmospheric air sucked through the nozzle to the intricate parts of machine for maintaining dust free environment thereby enhancing the quality of yarn and maximizing the production.

Model: ABB – 15 (Belt Drive), ABC – 20 (Chain Drive and Powerduct) and ABW – 50 for Weaving application.

FEATURES

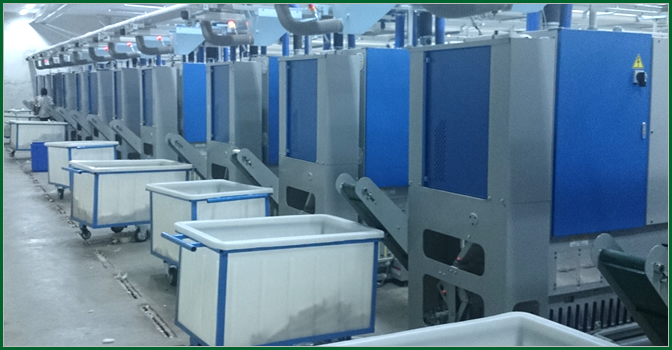

  • Specially Designed Hanging OHTC for LMW make LF 4200 series speed frame

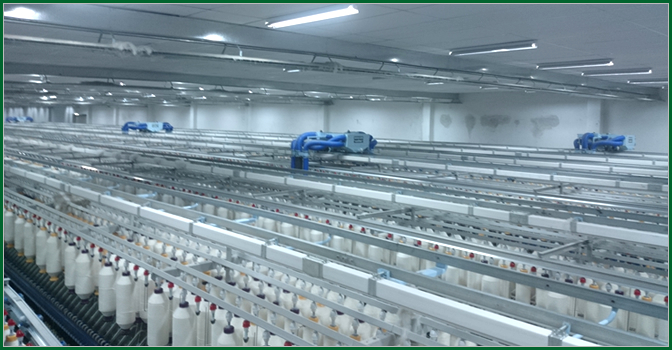

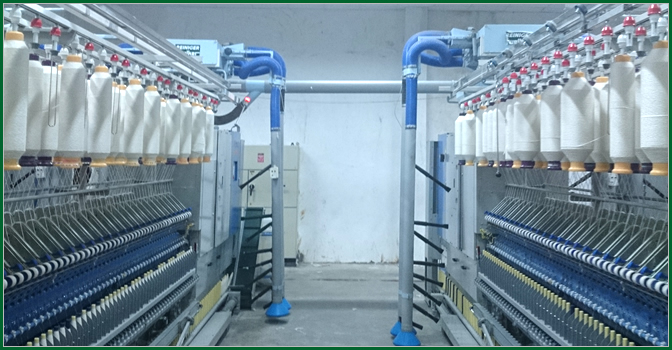

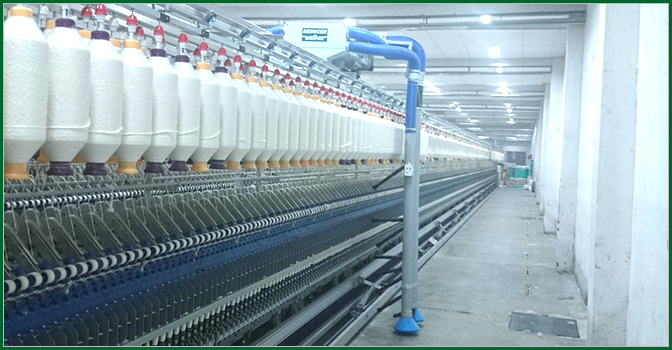

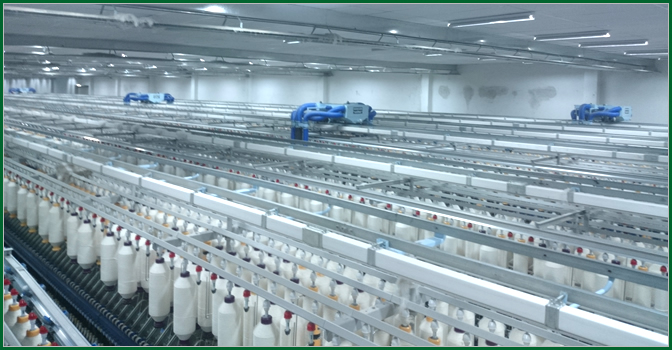

  • Common OHTC for Ring Spinning frame and Link Coner
  • Adjustable Blowing attachments to accommodate Bobbin Transport system with flexibility to interchange for all types of spinning frame
  • Auto-parking arrangements during doffing time
  • Suessen Elite Nozzle / RoCoS Compact yarn attachments
  • Wharve cleaning arrangements in case of Zinser make Ring frame
  • Over Hanging OHTC for Warping / Jacquard Looms
  • Obstacle sensor for auto reversal
  • Suction arrangements at Suction pipe / Centralised Collection
  • Suitable for Mixed Humidification system in Looms

TECHNICAL SPECIFICATION:

Description ABB - 15 ABC - 20 ABW - 50
Driver Mechanism Belt Powerduct / Chain Powerduct
Fan Motor in kW 1.5 / 2.2
 2.2 / 3.0 4
Driver motor in W - 150 150
Blowing in cu.M 2225 / 2550 2660 / 2960 3575
Suction in Pascal 2050 / 2250 2460 / 2660 3150
Speed in mtr / min 11 12 / 16 / 22 12 / 16
Blowing Pipe 2 Nos- Dia 125 2/4 Nos 125/100 16 Nos-Dia 75
Suction pipe 2/4 Nos-125/100 4 Nos- Dia 100 4 Nos – Dia 100
Filter area 0.16 sq m 0.14 sq.m
 0.14 sq.m
